SOTO-X1 Air Purifier
Solid metal structure and integrated air purification technologies reliably and efficiently purify indoor air. Ceiling mounted design saves floor space.
Ceiling mounted saves space metal structure for high durability
X1 is a ceiling mounted air purifier that does not take up any floor space. Built with galvanized sheet?metal to be solid, damage resistant, and rust-free. X1 combines multiple air purification and disinfection technologies to rapidly destroy and remove pollutants from indoor air. X1 is designed for recess mounting in drop ceilings. Hinged air intake panel can swing open for access and maintenance.
Ceiling-mounted saves space
The unit is designed for recess mounting in drop ceilings without taking up any floor space. Simply swing open the hinged air intake panel for access and maintenance.
Multiple air treatment technologies
The unit combines multiple advanced air treatment technologies and UV-PCO system to provide comprehensive air purification and disinfection.
UV-PCO system destroys a wide range of pollutants
X1 is equipped with two UV lamps and photo catalytic filters. UV light destroys all microorganisms. Moreover, UV irradiation on the photo catalytic filters generates strong oxidizing free radicals that actively decompose harmful pollutants in the air.
Continuously purifies indoor air with people around
The primary air purification elements are the HEPA filter and the UV-PCO system. The unit is safe and can continuously function in occupied spaces. The UV-PCO system destroys airborne microorganisms as they pass through or become trapped by the filter. Moreover, the photo catalytic oxidation process decomposes harmful chemical pollutants in the air.
Galvanized sheet metal
multiple air filters
multiple air filters
The unit is built with galvanized sheet metal to be solid, damage resistant and rust-free. Combining multiple air purification and disinfection technologies, it rapidly destroys and removes pollutants from indoor air.
Brushless DC fan motor
Brushless DC motor combined with double fan.
Remote control
Operate the unit by using remote control.
Easy and safe maintenance
Swing open the front panel for safe maintenance.
Release negative ions
Negative ions make indoor feel more pure, clean.
Full compliance with Technical Standard for Disinfection
Field testing proved that when in full capacity with negative ion turning on, the unit can effectively eliminate more than 90% of microorganisms in 1 hour from 80m3 indoor air. The results meet the disinfection requirements. (Report No. 2018FM08780R02a)
Trusted expertise, trusted brand
X1 is a ceiling mounted air purifier without taking up any floor space. X1 combines multi-stage professional air purification and disinfection technologies to provide protection against airborne pollutants. Galvanized sheet metal structure is solid, damage resistant, and rust-free. X1 becomes a favorable choice of medical professionals.
SOTO premium air purifier, trusted by medical professionals
X1 is a high-performance ceiling mounted air purifier that is preferred by many healthcare facilities. Integrated air purification technologies provide comprehensive protection against airborne pollutants. Galvanized sheet metal structure is solid, damage resistant, and rust-free. Hinged air intake panel can swing open for access and maintenance.
Specifications
-
Product nameSOTO-AE/ Code600T Air Purifier
-
Model No.SOTO-AE/ Code600T
-
Model AbbrSOTO-X1
-
Power220V, 50Hz
-
Power Req68W
-
UV Lamp2x6W
-
Negative Ion3x10?/cm3
-
Space80m3
-
OperationRemote control
-

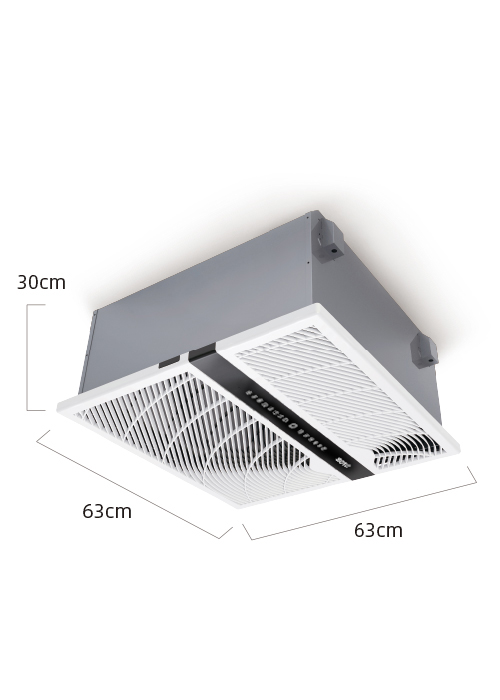

DimensionsW63cmx D63cmx H30cm
-
Weight22.3kg
-
ColourWhite
-
Power Cord2.5m
-
GuideOperate the unit for 1 hour at high air speed in 80m3 indoor space, with negative ion turning on
-
Main PartsMetal Pre filter/ HEPA filter/ Activated carbon filter/ UV-Photo catalytic system/ Negative ion
FAQ
How is X1 installed?
X1 is designed to be mounted on the ceiling by professional installers. The ceiling mount configuration is secure and space-saving.
What kind of fan system does X1 use?
A powerful brushless DC motor and the dual air duct system produce a quiet, smooth, and high-volume airflow for the X1 air purifier.
How to open X1 for maintenance?
Press the snap latch on each side of the air inlet panel to open the machine for maintenance. The electrical power will be automatically cut off to ensure safety when the panel is opened. No tools are needed for routine maintenance.
